Delivery Mechanics

How webhooks are delivered, retry logic with exponential backoff, message queuing, and automatic deactivation policies.

Delivery Flow

Loading diagram...

Delivery Lifecycle

Event Triggered

When an event occurs in Field Nation (e.g., work order published), the system identifies all webhooks subscribed to that event.

Job Creation

For each subscribed webhook, a delivery job is created and added to the message queue with:

Webhook configuration
Event payload
Delivery metadata
Retry counter (starts at 0)

Immediate Delivery Attempt

The delivery service picks up the job and sends an HTTP POST/PUT request to your endpoint:

POST /webhooks/fieldnation HTTP/1.1
Host: your-endpoint.com
Content-Type: application/json
x-fn-signature: sha256=abc123...
x-fn-webhook-id: wh_abc123
x-fn-event-name: workorder.created
x-fn-delivery-id: del_xyz789
x-fn-timestamp: 2025-01-15T10:30:00Z

{webhook payload}

Response Evaluation

Your endpoint's response determines the next step:

Response	Action
2xx (Success)	Mark delivery successful, log, done
404, 410	Hard failure, skip retries, log error
Other 4xx	Client error, skip retries, log error
5xx	Server error, schedule retry with backoff
Timeout (30s)	Network issue, schedule retry
Connection Error	Network issue, schedule retry

Retry or Complete

Success (2xx): Job complete, delivery logged
Hard failure (404/410): Job failed permanently, no retry
Retriable error: Job requeued with exponential delay

Retry Strategy

Field Nation uses exponential backoff to retry failed deliveries, giving your system time to recover from temporary issues.

Retry Schedule

Attempt	Delay After Previous	Total Time Elapsed	Notes
1 (Initial)	0 seconds	0 sec	Immediate
2	10 seconds	10 sec	-
3	20 seconds	30 sec	-
4	40 seconds	1 min 10 sec	-
5	80 seconds	2 min 30 sec	-
6	160 seconds	5 min 10 sec	-
7	320 seconds	10 min 30 sec	-
8	640 seconds	21 min 10 sec	Final attempt

Dynamic Retry Count

The maximum retry attempts are dynamic based on your webhook's success rate:

High success rate (>95%): Up to 7 retries
Medium success rate (80-95%): Up to 5 retries
Low success rate (<80%): Minimum 3 retries

This adaptive approach:

✅ Rewards reliable endpoints with more retry attempts
⚠️ Reduces load on consistently failing endpoints
🎯 Optimizes resource usage

Initial Setup: New webhooks start with 7 retry attempts. Success rate is calculated after ~100 deliveries.

Backoff Formula

Each retry doubles the previous delay:

function calculateDelay(attemptNumber) {
  const baseDelay = 10; // seconds
  return baseDelay * Math.pow(2, attemptNumber - 2);
}

// Attempt 2: 10 * 2^0 = 10 seconds
// Attempt 3: 10 * 2^1 = 20 seconds
// Attempt 4: 10 * 2^2 = 40 seconds
// ...

Hard Failures (No Retry)

Certain errors indicate permanent problems and skip retries entirely:

404 Not Found

HTTP/1.1 404 Not Found

Meaning: Your endpoint doesn't exist or path is incorrect

Action: No retry, delivery marked as permanently failed

Fix: Update webhook URL configuration

410 Gone

HTTP/1.1 410 Gone

Meaning: Endpoint permanently removed

Action: No retry, delivery marked as permanently failed

Fix: Delete webhook or update URL

Message Queue Architecture

Field Nation uses Redis-based queuing with multiple priority levels:

Queue Priority

High Priority: Critical events (payment, approval)
Normal Priority: Standard events (status changes)
Low Priority: Non-critical events (messages, uploads)

Queue Management

┌─────────────────┐
│  Event Occurs   │
└────────┬────────┘
         │
         ▼
┌─────────────────┐
│  Create Job     │
│  - Payload      │
│  - Retry: 0     │
│  - Priority     │
└────────┬────────┘
         │
         ▼
┌─────────────────┐
│  Message Queue  │
│  (Redis)        │
└────────┬────────┘
         │
         ▼
┌─────────────────┐
│ Delivery Worker │
│ Pick & Deliver  │
└────────┬────────┘
         │
    ┌────┴────┐
    │         │
    ▼         ▼
  Success   Failure
    │         │
    │         ▼
    │    ┌─────────┐
    │    │ Requeue │
    │    │ + Delay │
    │    └────┬────┘
    │         │
    │    Max retries?
    │         │
    │    ┌────┴────┐
    │    │   Yes   │   No
    │    ▼         ▼
    │   DLQ    Retry Queue
    │    │
    └────┴─> Delivery Log

Worker Pool

Multiple workers: Parallel delivery processing
Rate limiting: Prevents overwhelming your endpoint
Timeout handling: 30-second max per request

Dead Letter Queue (DLQ)

After exhausting all retries, failed deliveries move to the Dead Letter Queue for manual intervention.

What Goes to DLQ?

Deliveries that failed all retry attempts
Events that repeatedly timeout
Persistent 5xx errors from your endpoint

Manual Retry

You can manually retry deliveries via API or UI:

Via API:

curl -X PATCH https://api-sandbox.fndev.net/api/v1/webhooks/delivery-logs/del_xyz789/retry \
  -H "Authorization: Bearer YOUR_ACCESS_TOKEN"

Response:

{
  "metadata": {
    "timestamp": "2025-01-15T11:00:00Z"
  },
  "result": {
    "job_id": "job_abc123"
  }
}

Via UI:

Delivery Log Retry

This creates a new delivery job that you can track in delivery logs.

Automatic Deactivation

To prevent infinite failed delivery attempts, webhooks are automatically deactivated under certain conditions:

Deactivation Policy

Trigger: 7 consecutive days of failed deliveries
Action: Webhook status changes from active to inactive
Notification: Email sent to notificationEmail (if configured)

What Happens When Deactivated?

❌ No new delivery attempts
❌ Events are not queued
✅ Webhook configuration preserved
✅ Historical delivery logs remain accessible

Reactivation

Update webhook status to active after fixing endpoint issues:

curl -X PUT https://api-sandbox.fndev.net/api/v1/webhooks/wh_abc123 \
  -H "Authorization: Bearer YOUR_ACCESS_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "status": "active"
  }'

Important: Fix the underlying issues before reactivating. Repeated deactivations may result in permanent suspension.

Delivery Logging

Every delivery attempt is logged with complete details:

Log Contents

{
  "deliveryId": "del_xyz789",
  "webhookId": "wh_abc123",
  "workOrderId": 12345,
  "eventName": "workorder.status.published",
  "deliveryStatus": 200,
  "deliveryAttempt": 1,
  "requestUrl": "https://your-endpoint.com/webhooks",
  "requestMethod": "POST",
  "requestHeaders": {
    "content-type": "application/json",
    "x-fn-signature": "sha256=...",
    "x-fn-webhook-id": "wh_abc123"
  },
  "requestBody": "{...full payload...}",
  "responseStatus": 200,
  "responseHeaders": {
    "content-type": "text/plain"
  },
  "responseBody": "OK",
  "responseTime": 145,
  "createdAt": "2025-01-15T10:30:00Z"
}

Accessing Logs

Via API:

# List delivery logs
curl -X GET "https://api-sandbox.fndev.net/api/v1/webhooks/delivery-logs?webhookId=wh_abc123" \
  -H "Authorization: Bearer YOUR_ACCESS_TOKEN"

# Get specific delivery details
curl -X GET https://api-sandbox.fndev.net/api/v1/webhooks/delivery-logs/del_xyz789 \
  -H "Authorization: Bearer YOUR_ACCESS_TOKEN"

Via UI:

Navigate to Webhooks Dashboard
Select your webhook
Click "Delivery Logs" tab

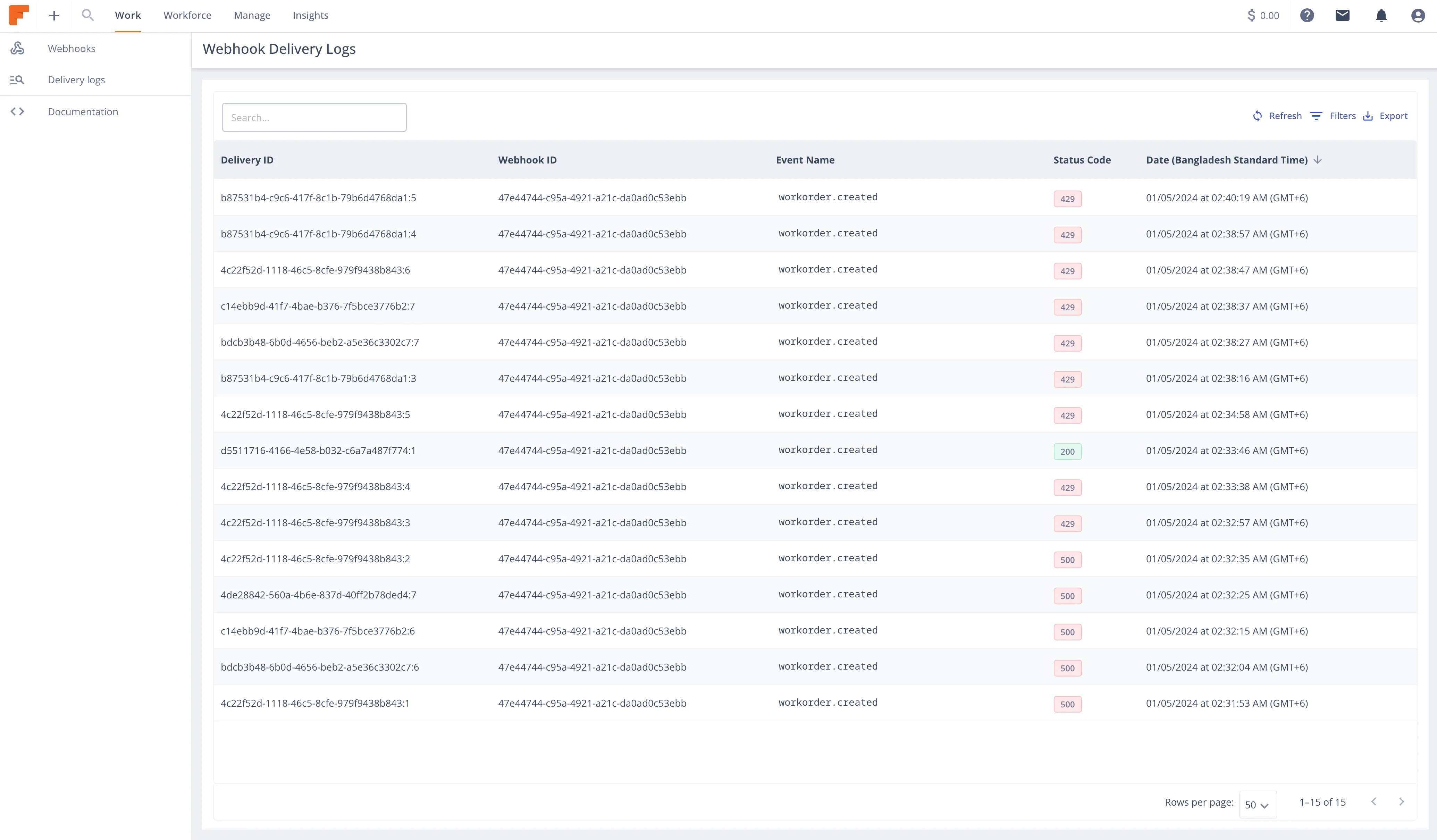

Delivery Logs Dashboard

Learn more about monitoring →

Delivery Best Practices

Respond Quickly (< 5 seconds)

app.post('/webhooks', async (req, res) => {
  // Acknowledge immediately
  res.status(200).send('OK');

  // Process asynchronously
  processWebhookAsync(req.body)
    .catch(error => {
      console.error('Async processing error:', error);
      // Log error, but response already sent
    });
});

Implement Idempotency

Handle duplicate deliveries gracefully:

async function processWebhook(payload) {
  const { eventId } = payload;

  // Check if already processed
  const processed = await redis.exists(`event:${eventId}`);
  if (processed) {
    console.log(`Already processed: ${eventId}`);
    return;
  }

  // Process the event
  await handleEvent(payload);

  // Mark as processed (TTL: 7 days)
  await redis.setex(`event:${eventId}`, 604800, 'true');
}

Return Appropriate Status Codes

app.post('/webhooks', async (req, res) => {
  try {
    // Verify signature
    if (!verifySignature(req.body, req.headers['x-fn-signature'])) {
      return res.status(401).send('Invalid signature');
    }

    // Acknowledge success
    return res.status(200).send('OK');

  } catch (error) {
    if (error.code === 'VALIDATION_ERROR') {
      // Client error, no retry needed
      return res.status(400).send('Invalid payload');
    }

    // Server error, retry appropriate
    console.error('Processing error:', error);
    return res.status(500).send('Internal error');
  }
});

Handle Network Issues

// Implement circuit breaker for downstream services
const circuitBreaker = new CircuitBreaker(async (payload) => {
  await syncToSalesforce(payload.data);
}, {
  timeout: 3000,           // 3 second timeout
  errorThresholdPercentage: 50,
  resetTimeout: 30000      // Try again after 30 seconds
});

async function processWebhookAsync(payload) {
  try {
    await circuitBreaker.fire(payload);
  } catch (error) {
    // Log error, webhook already acknowledged
    await logFailedProcessing(payload.eventId, error);
  }
}

Monitor Delivery Health

Set up alerts for:

High failure rate (>5%)
Increased retry attempts
Slow response times (>2 seconds)
Webhook deactivation

// Example CloudWatch metric
await cloudwatch.putMetricData({
  Namespace: 'Webhooks',
  MetricData: [{
    MetricName: 'DeliveryFailures',
    Value: failureCount,
    Unit: 'Count',
    Timestamp: new Date()
  }]
});

Delivery Guarantees

At-Least-Once Delivery

Field Nation guarantees at-least-once delivery:

✅ Every event will be delivered at least once
⚠️ Events may be delivered more than once
🎯 Implement idempotency to handle duplicates

Ordering

Events are delivered approximately in order, but strict ordering is not guaranteed:

Events from the same work order usually arrive in sequence
Network latency and retries can cause reordering
Don't rely on event order for critical logic

Example Handling Order-Sensitive Events

async function processWorkOrderEvent(payload) {
  const { workOrderId, timestamp, data } = payload;

  // Fetch current work order state
  const currentState = await getWorkOrder(workOrderId);

  // Check if event is stale (older than current state)
  if (new Date(timestamp) < new Date(currentState.updatedAt)) {
    console.log(`Stale event ignored: ${payload.eventId}`);
    return;
  }

  // Process the event
  await updateWorkOrder(workOrderId, data);
}

Troubleshooting Delivery Issues

Deliveries Not Arriving?

Common Delivery Errors

Error	Cause	Solution
Connection timeout	Endpoint slow to respond	Optimize response time, use async processing
SSL certificate error	Invalid/expired certificate	Renew SSL certificate
DNS resolution failed	Domain doesn't resolve	Check DNS configuration
Connection refused	Server not listening on port	Verify server is running, check firewall
502 Bad Gateway	Reverse proxy misconfiguration	Check nginx/load balancer config

Complete troubleshooting guide →

Last updated on

Payload Structure

Understanding webhook payloads - standard fields, work order data, headers, and how to parse webhook requests.

Webhook Lifecycle

Understanding webhook states (active, inactive, archived), transitions, history tracking, and change auditing.

Core Concepts

Delivery Mechanics

How webhooks are delivered, retry logic with exponential backoff, message queuing, and automatic deactivation policies.

Delivery Flow

Loading diagram...

Delivery Lifecycle

Event Triggered

When an event occurs in Field Nation (e.g., work order published), the system identifies all webhooks subscribed to that event.

Job Creation

For each subscribed webhook, a delivery job is created and added to the message queue with:

Webhook configuration
Event payload
Delivery metadata
Retry counter (starts at 0)

Immediate Delivery Attempt

The delivery service picks up the job and sends an HTTP POST/PUT request to your endpoint:

POST /webhooks/fieldnation HTTP/1.1
Host: your-endpoint.com
Content-Type: application/json
x-fn-signature: sha256=abc123...
x-fn-webhook-id: wh_abc123
x-fn-event-name: workorder.created
x-fn-delivery-id: del_xyz789
x-fn-timestamp: 2025-01-15T10:30:00Z

{webhook payload}

Response Evaluation

Your endpoint's response determines the next step:

Response	Action
2xx (Success)	Mark delivery successful, log, done
404, 410	Hard failure, skip retries, log error
Other 4xx	Client error, skip retries, log error
5xx	Server error, schedule retry with backoff
Timeout (30s)	Network issue, schedule retry
Connection Error	Network issue, schedule retry

Retry or Complete

Success (2xx): Job complete, delivery logged
Hard failure (404/410): Job failed permanently, no retry
Retriable error: Job requeued with exponential delay

Retry Strategy

Field Nation uses exponential backoff to retry failed deliveries, giving your system time to recover from temporary issues.

Retry Schedule

Attempt	Delay After Previous	Total Time Elapsed	Notes
1 (Initial)	0 seconds	0 sec	Immediate
2	10 seconds	10 sec	-
3	20 seconds	30 sec	-
4	40 seconds	1 min 10 sec	-
5	80 seconds	2 min 30 sec	-
6	160 seconds	5 min 10 sec	-
7	320 seconds	10 min 30 sec	-
8	640 seconds	21 min 10 sec	Final attempt

Dynamic Retry Count

The maximum retry attempts are dynamic based on your webhook's success rate:

High success rate (>95%): Up to 7 retries
Medium success rate (80-95%): Up to 5 retries
Low success rate (<80%): Minimum 3 retries

This adaptive approach:

✅ Rewards reliable endpoints with more retry attempts
⚠️ Reduces load on consistently failing endpoints
🎯 Optimizes resource usage

Initial Setup: New webhooks start with 7 retry attempts. Success rate is calculated after ~100 deliveries.

Backoff Formula

Each retry doubles the previous delay:

function calculateDelay(attemptNumber) {
  const baseDelay = 10; // seconds
  return baseDelay * Math.pow(2, attemptNumber - 2);
}

// Attempt 2: 10 * 2^0 = 10 seconds
// Attempt 3: 10 * 2^1 = 20 seconds
// Attempt 4: 10 * 2^2 = 40 seconds
// ...

Hard Failures (No Retry)

Certain errors indicate permanent problems and skip retries entirely:

404 Not Found

HTTP/1.1 404 Not Found

Meaning: Your endpoint doesn't exist or path is incorrect

Action: No retry, delivery marked as permanently failed

Fix: Update webhook URL configuration

410 Gone

HTTP/1.1 410 Gone

Meaning: Endpoint permanently removed

Action: No retry, delivery marked as permanently failed

Fix: Delete webhook or update URL

Message Queue Architecture

Field Nation uses Redis-based queuing with multiple priority levels:

Queue Priority

High Priority: Critical events (payment, approval)
Normal Priority: Standard events (status changes)
Low Priority: Non-critical events (messages, uploads)

Queue Management

┌─────────────────┐
│  Event Occurs   │
└────────┬────────┘
         │
         ▼
┌─────────────────┐
│  Create Job     │
│  - Payload      │
│  - Retry: 0     │
│  - Priority     │
└────────┬────────┘
         │
         ▼
┌─────────────────┐
│  Message Queue  │
│  (Redis)        │
└────────┬────────┘
         │
         ▼
┌─────────────────┐
│ Delivery Worker │
│ Pick & Deliver  │
└────────┬────────┘
         │
    ┌────┴────┐
    │         │
    ▼         ▼
  Success   Failure
    │         │
    │         ▼
    │    ┌─────────┐
    │    │ Requeue │
    │    │ + Delay │
    │    └────┬────┘
    │         │
    │    Max retries?
    │         │
    │    ┌────┴────┐
    │    │   Yes   │   No
    │    ▼         ▼
    │   DLQ    Retry Queue
    │    │
    └────┴─> Delivery Log

Worker Pool

Multiple workers: Parallel delivery processing
Rate limiting: Prevents overwhelming your endpoint
Timeout handling: 30-second max per request

Dead Letter Queue (DLQ)

After exhausting all retries, failed deliveries move to the Dead Letter Queue for manual intervention.

What Goes to DLQ?

Deliveries that failed all retry attempts
Events that repeatedly timeout
Persistent 5xx errors from your endpoint

Manual Retry

You can manually retry deliveries via API or UI:

Via API:

curl -X PATCH https://api-sandbox.fndev.net/api/v1/webhooks/delivery-logs/del_xyz789/retry \
  -H "Authorization: Bearer YOUR_ACCESS_TOKEN"

Response:

{
  "metadata": {
    "timestamp": "2025-01-15T11:00:00Z"
  },
  "result": {
    "job_id": "job_abc123"
  }
}

Via UI:

Delivery Log Retry

This creates a new delivery job that you can track in delivery logs.

Automatic Deactivation

To prevent infinite failed delivery attempts, webhooks are automatically deactivated under certain conditions:

Deactivation Policy

Trigger: 7 consecutive days of failed deliveries
Action: Webhook status changes from active to inactive
Notification: Email sent to notificationEmail (if configured)

What Happens When Deactivated?

❌ No new delivery attempts
❌ Events are not queued
✅ Webhook configuration preserved
✅ Historical delivery logs remain accessible

Reactivation

Update webhook status to active after fixing endpoint issues:

curl -X PUT https://api-sandbox.fndev.net/api/v1/webhooks/wh_abc123 \
  -H "Authorization: Bearer YOUR_ACCESS_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "status": "active"
  }'

Important: Fix the underlying issues before reactivating. Repeated deactivations may result in permanent suspension.

Delivery Logging

Every delivery attempt is logged with complete details:

Log Contents

{
  "deliveryId": "del_xyz789",
  "webhookId": "wh_abc123",
  "workOrderId": 12345,
  "eventName": "workorder.status.published",
  "deliveryStatus": 200,
  "deliveryAttempt": 1,
  "requestUrl": "https://your-endpoint.com/webhooks",
  "requestMethod": "POST",
  "requestHeaders": {
    "content-type": "application/json",
    "x-fn-signature": "sha256=...",
    "x-fn-webhook-id": "wh_abc123"
  },
  "requestBody": "{...full payload...}",
  "responseStatus": 200,
  "responseHeaders": {
    "content-type": "text/plain"
  },
  "responseBody": "OK",
  "responseTime": 145,
  "createdAt": "2025-01-15T10:30:00Z"
}

Accessing Logs

Via API:

# List delivery logs
curl -X GET "https://api-sandbox.fndev.net/api/v1/webhooks/delivery-logs?webhookId=wh_abc123" \
  -H "Authorization: Bearer YOUR_ACCESS_TOKEN"

# Get specific delivery details
curl -X GET https://api-sandbox.fndev.net/api/v1/webhooks/delivery-logs/del_xyz789 \
  -H "Authorization: Bearer YOUR_ACCESS_TOKEN"

Via UI:

Navigate to Webhooks Dashboard
Select your webhook
Click "Delivery Logs" tab

Delivery Logs Dashboard

Learn more about monitoring →

Delivery Best Practices

Respond Quickly (< 5 seconds)

app.post('/webhooks', async (req, res) => {
  // Acknowledge immediately
  res.status(200).send('OK');

  // Process asynchronously
  processWebhookAsync(req.body)
    .catch(error => {
      console.error('Async processing error:', error);
      // Log error, but response already sent
    });
});

Implement Idempotency

Handle duplicate deliveries gracefully:

async function processWebhook(payload) {
  const { eventId } = payload;

  // Check if already processed
  const processed = await redis.exists(`event:${eventId}`);
  if (processed) {
    console.log(`Already processed: ${eventId}`);
    return;
  }

  // Process the event
  await handleEvent(payload);

  // Mark as processed (TTL: 7 days)
  await redis.setex(`event:${eventId}`, 604800, 'true');
}

Return Appropriate Status Codes

app.post('/webhooks', async (req, res) => {
  try {
    // Verify signature
    if (!verifySignature(req.body, req.headers['x-fn-signature'])) {
      return res.status(401).send('Invalid signature');
    }

    // Acknowledge success
    return res.status(200).send('OK');

  } catch (error) {
    if (error.code === 'VALIDATION_ERROR') {
      // Client error, no retry needed
      return res.status(400).send('Invalid payload');
    }

    // Server error, retry appropriate
    console.error('Processing error:', error);
    return res.status(500).send('Internal error');
  }
});

Handle Network Issues

// Implement circuit breaker for downstream services
const circuitBreaker = new CircuitBreaker(async (payload) => {
  await syncToSalesforce(payload.data);
}, {
  timeout: 3000,           // 3 second timeout
  errorThresholdPercentage: 50,
  resetTimeout: 30000      // Try again after 30 seconds
});

async function processWebhookAsync(payload) {
  try {
    await circuitBreaker.fire(payload);
  } catch (error) {
    // Log error, webhook already acknowledged
    await logFailedProcessing(payload.eventId, error);
  }
}

Monitor Delivery Health

Set up alerts for:

High failure rate (>5%)
Increased retry attempts
Slow response times (>2 seconds)
Webhook deactivation

// Example CloudWatch metric
await cloudwatch.putMetricData({
  Namespace: 'Webhooks',
  MetricData: [{
    MetricName: 'DeliveryFailures',
    Value: failureCount,
    Unit: 'Count',
    Timestamp: new Date()
  }]
});

Delivery Guarantees

At-Least-Once Delivery

Field Nation guarantees at-least-once delivery:

✅ Every event will be delivered at least once
⚠️ Events may be delivered more than once
🎯 Implement idempotency to handle duplicates

Ordering

Events are delivered approximately in order, but strict ordering is not guaranteed:

Events from the same work order usually arrive in sequence
Network latency and retries can cause reordering
Don't rely on event order for critical logic

Example Handling Order-Sensitive Events

async function processWorkOrderEvent(payload) {
  const { workOrderId, timestamp, data } = payload;

  // Fetch current work order state
  const currentState = await getWorkOrder(workOrderId);

  // Check if event is stale (older than current state)
  if (new Date(timestamp) < new Date(currentState.updatedAt)) {
    console.log(`Stale event ignored: ${payload.eventId}`);
    return;
  }

  // Process the event
  await updateWorkOrder(workOrderId, data);
}

Troubleshooting Delivery Issues

Deliveries Not Arriving?

Common Delivery Errors

Error	Cause	Solution
Connection timeout	Endpoint slow to respond	Optimize response time, use async processing
SSL certificate error	Invalid/expired certificate	Renew SSL certificate
DNS resolution failed	Domain doesn't resolve	Check DNS configuration
Connection refused	Server not listening on port	Verify server is running, check firewall
502 Bad Gateway	Reverse proxy misconfiguration	Check nginx/load balancer config

Complete troubleshooting guide →

Last updated on

Payload Structure

Understanding webhook payloads - standard fields, work order data, headers, and how to parse webhook requests.

Webhook Lifecycle

Understanding webhook states (active, inactive, archived), transitions, history tracking, and change auditing.

Delivery Mechanics

Check webhook status

Verify endpoint accessibility

Review delivery logs

Check SSL certificate

On this page

Delivery Mechanics

Check webhook status

Verify endpoint accessibility

Review delivery logs

Check SSL certificate

On this page
